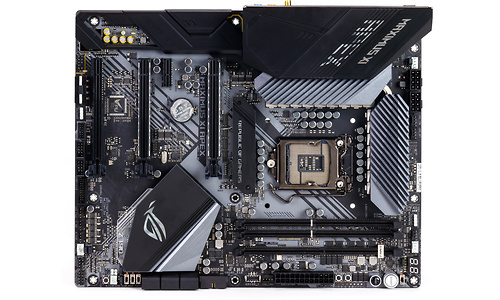

Asus RoG Maximus XI Apex

Prijsverloop

Dit product is niet (meer) verkrijgbaar bij de bij Hardware Info aangesloten shops.

Specificaties

Belangrijkste specificaties

Formaat ATX
CPU socket Socket 1151
Intel Coffee Lake compatible
Chipset Intel Z390
Type geheugen DDR4

Processor / Chipset

Formaat ATX
Ondersteunde processor(s) Intel Core i3 / i5 / i7 / i9 / Celeron / Pentium
Ondersteuning Intel Xeon-processor
CPU socket Socket 1151
Aantal sockets 1
Intel Coffee Lake compatible
Chipset Intel Z390
Chipset - Extra PLX PEX8747

Geheugen

Type geheugen DDR4
Type modules DIMM
Type ECC ondersteuning Geen
Hoogst instelbare geheugensnelheid DDR4-8533
Aantal geheugenkanalen 2
Aantal geheugensloten 2
Intel XMP compatible
Maximum intern geheugen 64 GB
DDR3 SODIMM-sloten 0
DDR3 DIMM-sloten 0
DDR4 DIMM-sloten 2
DDR4 SODIMM-sloten 0

Uitbreidingssloten

Totaal aantal fysieke PCI-Express x16 sloten 3
PCI-Express 4.0 x16 sloten 1
PCI-Express 3.0 x16 sloten 1
PCI-Express x8 sloten 0
PCI-Express x4 sloten 0
Totaal aantal fysieke PCI-Express x1 sloten 1
PCI-Express 3.0 x1 sloten 1
Totaal aantal lanes alle PCI-Express x16 sloten 20
PCI-Express versie (hoogste) 3.0
PCI-sloten 0

Multi-GPU

Nvidia SLI compatible
Nvidia SLI (2-way)
Nvidia SLI (3-way)
Nvidia SLI (4-way)
AMD CrossFire compatible
AMD CrossFire (2-way)
AMD CrossFire (3-way)
AMD CrossFire (4-way)

Connectiviteit

USB 2.0 - extern 0
USB 2.0 - headers 2
USB 3.0 (USB 3.1 Gen 1) - Type-A poorten 6
USB 3.0 (USB 3.1 Gen 1) - Type-C poorten 0
USB 3.0 (USB 3.1 Gen 1) - headers 2
USB 3.0 (USB 3.1 Gen 1) - Type-C headers 0
USB 3.1 (USB 3.2 Gen 2) - Type-A poorten 6
USB 3.1 (USB 3.2 Gen 2) - Type-C poorten 1
USB 3.1 (USB 3.2 Gen 2) - Type-C headers 1
USB 3.1 (USB 3.2 Gen 2) - extern (type-a + type-c) 4
Video via USB-C
Aantal Thunderbolt headers 1
Thunderbolt 3

Storage

Serial ATA aansluitingen (totaal) 6
Serial ATA 600 aansluitingen 6
Serial ATA Express aansluitingen 0
mSATA aansluitingen 0
M.2 aansluitingen 2
M.2 slot 1 type PCIe 3.0 x4 (4 GB/s)
M.2 slot 2 type PCIe 3.0 x4 (4 GB/s)
Aantal M.2 koelers 0
U.2 aansluitingen 0
RAID 0 ondersteuning
RAID 1 ondersteuning
RAID 5 ondersteuning
RAID 10 ondersteuning

Video

D-Sub (VGA) uitgang
DVI uitgang
HDMI uitgang
HDMI-versie 2.1
Aantal HDMI uitgangen 0
DisplayPort uitgang
DisplayPort-versie 1.2
Aantal DisplayPort uitgangen 0

Audio

Onboard audio - Kanalen 7.1
Onboard audio - Codec chip Realtek ALC1220
Onboard audio - Codec type HDA
S/PDIF ingang
S/PDIF uitgang
Dolby Digital Live
DTS Connect

Netwerk

Aantal netwerkaansluitingen 1
Snelste ethernet 1 Gbit/s
LAN - Chip Intel I219V
LAN - Snelheid 1.000 Mbit/s
WLAN - Standaard 802.11ax (Wi-Fi 6)
Bluetooth
Bluetooth-versie 5.0
Intel CNVi

Stroomcircuit

Primaire PWM controller Digi+ ASP1405I
CPU - Aantal fasen 8
CPU - Aantal chokes 16
CPU - Aantal mosfets per choke 1
CPU - Type mosfets IR3555M
CPU - Doublers
SoC - Aantal fasen 0
SoC - Aantal chokes 0
SoC - Aantal mosfets per choke 0
SoC - Doublers

Koeling / Overklokken

Fan aansluitingen (totaal) 11
Fan aansluitingen (4-pin) 11
Fan aansluitingen (PWM) 11
VRM koeling Passief
Chipset koeler Passief
Maximale FSB/bClk frequentie 1.000 MHz
Max. CPU voltage 1,7 V
Max. VCCIO voltage 1,8 V
Max. VCCSA voltage 1,8 V
Max. geheugen voltage 2 V
Multiplier instelbaar
CPU Turbo Modus uitschakelbaar
HyperThreading/SMT uitschakelbaar
Cores uitschakelbaar
PCI-Express sloten hardwarematig uitschakelbaar
Voltage meetpunten op moederbord
Bevestiging koelblokken Schroeven

Overig

Bios flashen zonder CPU
Dual BIOS
Flash-programma in BIOS
BIOS profielen
Type probleemdiagnose HEX-display
On-board Power / Reset switch
On-board Clear CMOS switch
BIOS-chip(s) vervangbaar
Direct-naar-BIOS knop
Intel turbo spec
RGB Header
RGB Pin-out 12V-GRB
Aantal reguliere RGB headers 1
RGB verlichting geïntegreerd
Addressable RGB header
Aantal addressable RGB headers 1
Geïntegreerd I/O-shield

Productcodes

SKU 90MB0XV0-M0EAY0
EAN 4718017120685
Toegevoegd aan Hardware Info vrijdag 2 november 2018

Testresultaten

Dit product is door Hardware Info getest op dinsdag 4 juni 2019.

Audio test

Frequency response [+] 0,07 dB
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Frequency response [-] 0,01 dB
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Noise level 102 dB(A)
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Dynamic range 104,2 dB(A)
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Total Harmonic Distortion (THD) 0,0010 %
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Intermodulation Distortion (IMD) + Noise 0,008 %
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Stereo crosstalk 87,4 dB
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
IMD+N (Swept frequency) 0,007 %
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test

Benchmarks (Intel Core i7 8700K, iGPU, Win 10 Pro x64)

Passmark 8 CPUMark 15.764,8
Testconfiguratie
  • Intel Core i7 8700K, 2x8 GB DDR4
  • 2666, Samsung 850 Evo 500GB (Windows 10 Pro x64)
Passmark 8 MemoryMark 2.995,8
Testconfiguratie
  • Intel Core i7 8700K, 2x8 GB DDR4
  • 2666, Samsung 850 Evo 500GB (Windows 10 Pro x64)
Tech Arp x264 HD Benchmark 5.0.1 - Pass 1 105,13 fps
Testconfiguratie
  • Intel Core i7 8700K, 2x8 GB DDR4
  • 2666, Samsung 850 Evo 500GB (Windows 10 Pro x64)
Tech Arp x264 HD Benchmark 5.0.1 - Pass 2 30,18 fps
Testconfiguratie
  • Intel Core i7 8700K, 2x8 GB DDR4
  • 2666, Samsung 850 Evo 500GB (Windows 10 Pro x64)
Cinebench R15 1.390
Testconfiguratie
  • Intel Core i7 8700K, 2x8 GB DDR4
  • 2666, Samsung 850 Evo 500GB (Windows 10 Pro x64)
DiskSPD Read (USB 3.1) 967,052 MB/s
Testconfiguratie
  • Intel Core i7 8700K, 2x8 GB DDR4
  • 2666, Samsung 850 Evo 500GB (Windows 10 Pro x64)
DiskSPD Write (USB 3.1) 931,294 MB/s
Testconfiguratie
  • Intel Core i7 8700K, 2x8 GB DDR4
  • 2666, Samsung 850 Evo 500GB (Windows 10 Pro x64)
Stroomverbruik - Idle (gemiddelde 5 min.) 46,8 W
Testconfiguratie
  • Intel Core i7 8700K, 2x8 GB DDR4
  • 2666, Samsung 850 Evo 500GB (Windows 10 Pro x64)
Stroomverbruik - Cinebench R15 (max) 113 W
Testconfiguratie
  • Intel Core i7 8700K, 2x8 GB DDR4
  • 2666, Samsung 850 Evo 500GB (Windows 10 Pro x64)
Gebruikte BIOS-versie tijdens test 0805
Testconfiguratie
  • Intel Core i7 8700K, 2x8 GB DDR4
  • 2666, Samsung 850 Evo 500GB (Windows 10 Pro x64)
Standaard bClk waarde 100,46 MHz
Testconfiguratie
  • Intel Core i7 8700K, 2x8 GB DDR4
  • 2666, Samsung 850 Evo 500GB (Windows 10 Pro x64)
Max. VRM-temperatuur voorzijde na 15 min. 48,8 °C
Testconfiguratie
  • Intel Core i7 8700K, 2x8 GB DDR4
  • 2666, Samsung 850 Evo 500GB (Windows 10 Pro x64)
Max. VRM-temperatuur achterzijde na 15 min. 47,5 °C
Testconfiguratie
  • Intel Core i7 8700K, 2x8 GB DDR4
  • 2666, Samsung 850 Evo 500GB (Windows 10 Pro x64)
Throttling tijdens VRM-test
Testconfiguratie
  • Intel Core i7 8700K, 2x8 GB DDR4
  • 2666, Samsung 850 Evo 500GB (Windows 10 Pro x64)
