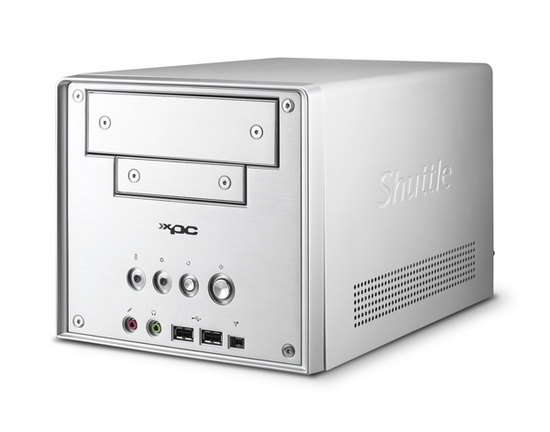

Shuttle presenteert de SS30G2, een betaalbare oplossing om een compacte computer op basis van een Intel Celeron D, Pentium 4 of Pentium D te bouwen. Voor een Core 2 Duo is de betaalbare barebone helaas niet geschikt. Het systeem is opgebouwd rondom een SiS-chipset met een ingebouwde grafische processor. Om het systeem verder uit te breiden staat je een PCI-Express x16 slot en een gewoon PCI-slot ter beschikking. Verder is het compacte computertje voorzien van 6-kanaals geluid, firewire, USB 2.0 en uiteraard Shuttle's stille heatpipe koeler.
De SS30G2 heeft een adviesprijs van 235 euro.
Chassis
G2-type chassis made of aluminum, silver color
storage bays: 1 x 5.25", 2 x 3.5" (1 internal)
dimensions: 30 x 20 x 18.5 cm (LWH)
weight: 3.4 kg net / 4,8 kg gross
Slim-line and pre-installed cabling removes airflow impedance
and makes installation a snap
Mainboard
Shuttle FS30, Shuttle form factor, proprietary design for SS30G2
chipset: SiS 662 Northbridge and SiS 966L Southbridge
Award V6.0PG BIOS, 4MBit flash memory
with hardware monitoring and APM 1.2 / ACPI 2.0 power management functions
dimensions: 25.4 x 18.5 cm
Power supply unit
200 Watt mini PSU, supports 115/230V
Active PFC: Power-Factor-Correction with active components
connectors: 20-pin ATX, 4-pin ATX12V
EMI Certified: FCC, CE, BSMI, BSMI, C-tick, CCC
Safety Certified: UL, TÜV, CB, BSMI, CCC
Power cord: region specific
Processor support
Socket 775 supports Intel Pentium D, Pentium 4 and Celeron D processors
at 800 und 533 FSB clock rate
supports Intel 65nm/90nm Single Core and Dual Core processors
supports Hyper-Threading and TM2 (Thermal Management 2)
Processor cooling system
Shuttle I.C.E. (Integrated Cooling Engine)
advanced Heatpipe technology
linear fan control, 92mm cooling fan
Memory support
2 x 240 pin DIMM sockets
supports DDR2-533/667 memory
up to a total size of 2GB, max. 1GB per module
Expansion slots
1 x PCI-Express 16X graphics slot (PEG)
1 x 32 Bit PCI (v2.2)
Integrated graphics controller
SiS Mirage 256-bit 3D engine
DirectX 7.0 compliant
shared Memory max. 128MB
6-channel Audio
5.1 channel AC97 v2.3 audio controller
Connectors: line-out (6-ch), line-in, microphone, CD-in, SPDIF out (coaxial)
LAN controller
Fast Ethernet network controller
supports 10 / 100 MBit/s opteration
IEEE 802.3u 100Base-T specifications compliant
Firewire controller
IEEE1394 Firewire controller VIA 6307
with 2 Firewire connectors (1x front and 1x rear)
supports 400Mb/s, 200Mb/s, 100Mb/s data transfer rate
Drive connectors
2 x Serial-ATA 150 supports Raid 0, 1, JBOD, NCQ
1 x IDE ATA 133 drives
1 x floppy disk drive
Front-panel I/O
Microphone
Headphone (Line-out)
2x USB 2.0
Firewire (4 pol., mini)
Power and Reset button
Back-panel I/O
VGA connector for monitor (D-Sub)
Firewire (6 pin)
PS/2 for mouse and keyboard
LAN (RJ45)
4 x USB 2.0
6-ch Audio line-out (2x rear/front, bass/center)
Digital SPDIF out (coaxial)
Line-in
Serial port (COM)
Clear CMOS button
optional Wireless LAN module (PN15g/PN18)
optional parallel port (PC8/PC9)
Other onboard connectors
2x USB 2.0 (à 5 pin, total 8x USB)
1x audio input (AUX)
2x fan connectors (3 pin and 4 pin)
Accessories
Shuttle I.C.E. Thermal Module (heat-pipe)
XPC Driver CDROM
XPC Extras CDROM (Software)
XPC Multilanguage Guide
RAID Manual and floppy disk with RAID drivers
Power cord
Screws and Heatsink compound
Bron: Shuttle persbericht
