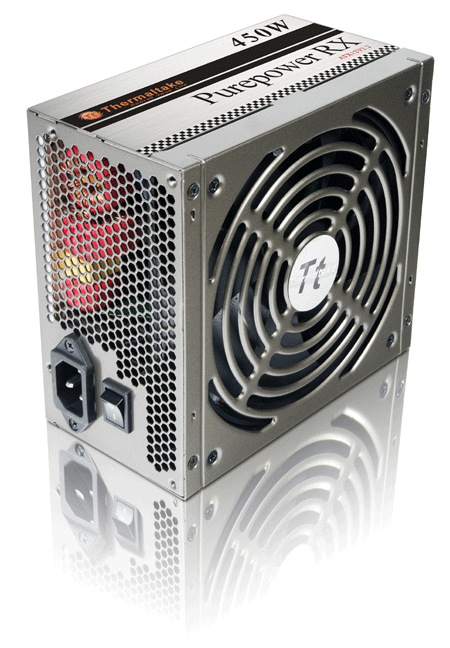

De RX serie is compatibel met Intels ATX12V V2.2 specificaties en beschikt over de Active PFC (power factor correction) technologie. Tevens aanwezig zijn: Over voltage protection (OVP), over current protection (OCP), short circuit protection (SCP) en no load operation protection. De Purepower RX reeks wordt standaard geleverd met vier SATA connectors, maximaal zeven Molex connectors voor optische drives of ventilatoren en twee PCI-Express connectors.
| Type |
W0149 |
| Maximum Power | 450 Watt |
| Kleur | Hi-Tech Black |
| Schakelaars | ATX Logic on-off additional power rocker switch |
| PFC (Power Factor Correction) | Active PFC |
| Koelsysteem | 14 cm Fan |
| * | Snelheid : 1900RPM ±10% |
| * | Afmetingen: 140 X 140 X 25 mm |
| * | Airflow: 86.5 CFM |
| * | Bearing type: Two Ball Bearing |
| * | Temp. Auto Control |
| Noise | 16dB bij 1300 RPM |
| P. G. Signal | 100-500 ms |
| Over Voltage Protection Recycle AC to Reset | +5V trip point < +7.0V |
| * | +3.3V trip point < +4.5V |
| * | +12V trip point < +15.6V |
| Afmetingen | * |
| Apparaat afemtingen |
15cm(L)x16cm(B)x8.6cm(H) |
| Netto gewicht |
2,12 kg |
| Input | * |
| Input Voltage | 115 VAC ~ 230 VAC |
| Input Frequentie Range |
47 ~ 63 Hz |
| Input Current | 6A / 3A |
| Hold-up Time | 16ms |
| Efficiency | Typical 75% (min.) |
