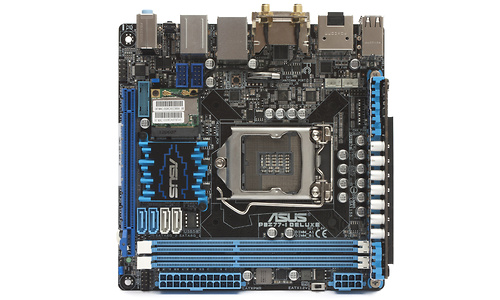

Asus P8Z77-I Deluxe

Prijsverloop

Dit product is niet (meer) verkrijgbaar bij de bij Hardware Info aangesloten shops.

Specificaties

Belangrijkste specificaties

Formaat Mini ITX
CPU socket Socket 1155
Intel Coffee Lake compatible
Chipset Intel Z77
Type geheugen DDR3

Processor / Chipset

Formaat Mini ITX
Ondersteunde processor(s) Intel Core i3 / i5 / i7
CPU socket Socket 1155
Intel Coffee Lake compatible
Type processorbus DMI
Chipset Intel Z77

Geheugen

Type geheugen DDR3
Type modules DIMM
ECC ondersteuning
Hoogst instelbare geheugensnelheid DDR3-2400
Aantal geheugenkanalen 2
Aantal geheugensloten 2
Intel XMP compatible
Maximum intern geheugen 16 GB
DDR DIMM-sloten 0
DDR2 DIMM-sloten 0
DDR2 SODIMM-sloten 0
DDR3 SODIMM-sloten 0
DDR3 DIMM-sloten 2

Uitbreidingssloten

Totaal aantal fysieke PCI-Express x16 sloten 1
PCI-Express x8 sloten 0
PCI-Express x4 sloten 0
Totaal aantal fysieke PCI-Express x1 sloten 0
Totaal aantal lanes alle PCI-Express x16 sloten 16
Mini PCI-Express aansluitingen 1
PCI-sloten 0

Multi-GPU

Nvidia SLI compatible
AMD CrossFire compatible

Connectiviteit

USB 2.0 - Totaal 8
USB 2.0 - extern 4
USB 3.0 (USB 3.2 Gen 1) - Totaal 6
USB 3.0 (USB 3.1 Gen 1) - Type-A poorten 4
IEEE 1394 controller -
IEEE 1394 - Aansluitingen achterzijde 0

Storage

Parallel ATA aansluitingen 0
Serial ATA aansluitingen (totaal) 4
Serial ATA 300 aansluitingen 2
Serial ATA 600 aansluitingen 2
eSATA aansluitingen 2
mSATA aansluitingen 0
Extra PATA (RAID) controller -
Extra SATA (RAID) controller -
RAID 0 ondersteuning
RAID 1 ondersteuning
RAID 5 ondersteuning
RAID 10 ondersteuning

Video

D-Sub (VGA) uitgang
DVI uitgang
HDMI uitgang
HDMI-versie 1.4a
Aantal HDMI uitgangen 1
DisplayPort uitgang
Aantal DisplayPort uitgangen 1

Audio

Onboard audio - Kanalen 7.1
Onboard audio - Codec chip Realtek ALC898
Onboard audio - Codec type HDA
S/PDIF ingang
S/PDIF uitgang

Netwerk

Aantal netwerkaansluitingen 1
LAN - Chip Intel 82579V
LAN - Snelheid 1.000 Mbit/s
WLAN - Standaard 802.11n (Wi-Fi 4)
WLAN - Chip Onbekend
Bluetooth
Bluetooth-versie 4.0

Stroomcircuit

Totaal aantal chokes 8

Koeling / Overklokken

Fan aansluitingen (totaal) 2
Fan aansluitingen (4-pin) 2
Fan snelheid afhankelijk van temperatuur
Chipset koeler Passief
Maximale FSB/bClk frequentie 300 MHz
Max. CPU voltage 1,99 V
Max. VCCSA voltage 1,56 V
Max. geheugen voltage 2,135 V
CPU PLL voltage tweaking (maximaal) 0,1 V
North bridge / PCH 1.05V/1.09V voltage tweaking (maximaal) 1,4 V
Windows software voor overklokken meegeleverd
Multiplier instelbaar
PCI-Express klokfrequentie instelbaar
Heatsinks op cpu stroomvoorziening
CPU Turbo Modus uitschakelbaar
HyperThreading/SMT uitschakelbaar
Cores uitschakelbaar
PCI-Express sloten hardwarematig uitschakelbaar
Voltage meetpunten op moederbord

Overig

Onboard speaker
100% Solid Condensators
BIOS type EFI
Dual BIOS
Boot-menu in BIOS
Flash-programma in BIOS
BIOS profielen
Probleem diagnose
On-board Power / Reset switch
On-board Clear CMOS switch
Trusted Platform Module
BIOS-chip(s) vervangbaar
Lucid VirtuMVP software

Productcodes

SKU 90-MIBI70-G0EAY0DZ, P8Z77-I DELUXE, 4719543185148, P8Z77-IDELUXE, P8Z77IDELUXE
EAN 0610839185146, 4719543185148
Toegevoegd aan Hardware Info dinsdag 10 april 2012

Testresultaten

Dit product is door Hardware Info getest op dinsdag 29 mei 2012.

Benchmarks (Core i5 2500K, geïnt. graphics, Win7 x64)

SiSoft Sandra 2011 - CPU - Dhrystone 101,6 Gips
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)
SiSoft Sandra 2011 - CPU - Whetstone 49 GFlops
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)
SiSoft Sandra 2011 - Memory Bandwidth 17,37 GB/s
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)
Cinebench 10 5.648
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)
3DMark Vantage 1.765
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)
Stroomverbruik - Idle 39,9 W
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)
Stroomverbruik - Actief - Cinebench 10 (max) 90,7 W
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)
Stroomverbruik - Actief - 3DMark Vantage (max) 93,8 W
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)

Benchmarks (Core i5 2500K, Radeon HD 6850, Win7 x64)

SiSoft Sandra 2011 - CPU - Dhrystone 101,61 Gips
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)
SiSoft Sandra 2011 - CPU - Whetstone 48,12 GFlops
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)
SiSoft Sandra 2011 - Memory Bandwidth 17,7 GB/s
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)
Cinebench 10 5.596
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)
3DMark Vantage 14.364
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)
Stroomverbruik - Idle 61,2 W
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)
Stroomverbruik - Actief - Cinebench 10 (max) 112 W
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)
Stroomverbruik - Actief - 3DMark Vantage (max) 135 W
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)

Benchmarks (Core i7 3770K, geïnt. graphics, Win7 x64)

PCMark 7 Computation Test 14.584
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
3DMark Vantage (P) 4.140
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Cinebench 11.5 7,46
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Passmark 7 CPUmark 10.481,1
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Passmark 7 MemoryMark 1.565,6
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Stroomverbruik - 3DMark Vantage (gemiddeld) 66,5 W
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Stroomverbruik - Cinebench 11.5 (max) 95,1 W
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Stroomverbruik - Idle (gemiddelde 5 min.) 26,4 W
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Gebruikte BIOS-versie tijdens test 0504
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Standaard bClk waarde 100,3 MHz
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)

Audio test

Frequency response [+] 0,08 dB
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Frequency response [-] 0,12 dB
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Noise level 91,8 dB(A)
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Dynamic range 91,6 dB(A)
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Total Harmonic Distortion (THD) 0,0059 %
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Intermodulation Distortion (IMD) + Noise 0,041 %
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Stereo crosstalk 89,1 dB
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
IMD+N (Swept frequency) 0,034 %
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
