Getest

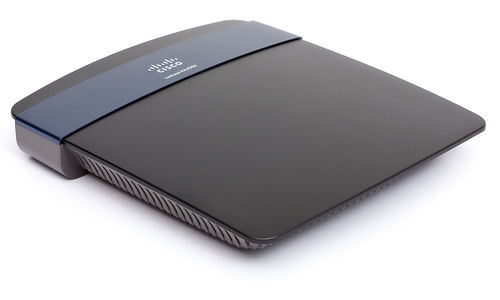

Linksys EA3500

Prijsverloop

Dit product is niet (meer) verkrijgbaar bij de bij Hardware Info aangesloten shops.

Specificaties

Belangrijkste specificaties

802.11-standaard 802.11n (Wi-Fi 4)
Geïntegreerd ADSL-modem

WiFi

Draadloos
802.11-standaard 802.11n (Wi-Fi 4)
Totale WiFi-snelheid 450 Mbit/s
Ondersteuning 2,4 GHz frequentieband
Gastnetwerk 2,4 GHz
Ondersteuning 5 GHz freqentieband
Gastnetwerk 5 GHz
Aantal antennes 6
Antennes intern/extern Intern
Verwisselbare antenne(s)
WMM (Wireless MultiMedia / 802.11e) compatible
Wireless Distribution System (WDS)

Bedraad

Aantal LAN-aansluitingen 4
LAN snelheid 1.000 Mbit/s

Internet

Ethernet WAN-aansluiting
Geïntegreerd ADSL-modem
RFC 2364 (PPP over ATM) compatible
RFC 1483 (Ethernet over ATM) compatible
PPPoE compatible
Installatie wizard

Beveiliging

64-bit WEP beveiliging
128-bit WEP beveiliging
256-bit WEP beveiliging
WPA beveiliging
WPA2 beveiliging
WLAN standaard beveiligd
WLAN beveiligd na installatie wizard
WLAN Mac filtering
WPS (Wi-Fi Protected Setup) ondersteuning

Router-mogelijkheden

Remote management
DHCP-server
Port forwarding / Virtual servers
Firewall
SPI Firewall
Poorten beperking lokale PC's
URL blokkering
Tijdsblokkering algemeen
Negeer ping van WAN
DMZ (Demilitarized Zone)
Dynamic DNS cliënt
UPnP
IPv6-ondersteuning
VPN passthrough
VPN-server
Port triggering
QoS - Upstream beperken
QoS - Downstream beperken
QoS - Programma's/poorten prioriteren
QoS - PC's prioriteren
QoS - Lan Poorten Prioriteren
QoS - Mac-adres prioriteren

Overige hardware

Firmware tijdens test 1.1.38.138880
Auto firmware check/update
USB printerserver
USB fileserver
USB webcam server
BitTorrent server
Nederlandstalige GUI optie

Productcodes

SKU EA3500-EW, EA3500
EAN 4260184661213, 0745883595365, 0745883595501
Toegevoegd aan Hardware Info woensdag 11 april 2012

Testresultaten

Dit product is door Hardware Info getest op woensdag 27 maart 2013.

WLAN Testconfiguratie 2012 invoer

2P WLAN -> LAN i.c.m. Centrino 6300 2,4 GHz [10m.] (run 1) 75 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
2P LAN -> WLAN i.c.m. Centrino 6300 2,4 GHz [10m.] (run 1) 85 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
2P WLAN -> LAN i.c.m. Centrino 6300 5 GHz [10m.] (run 1) 126 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
2P LAN -> WLAN i.c.m. Centrino 6300 5 GHz [10m.] (run 1) 85 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter

WLAN Testconfiguratie 2012

2P WLAN -> LAN i.c.m. Centrino 6300 2,4 GHz [10m.] (gem.) 75 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
2P LAN -> WLAN i.c.m. Centrino 6300 2,4 GHz [10m.] (gem.) 85 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
2P WLAN -> LAN i.c.m. Centrino 6300 5 GHz [10m.] (gem.) 126 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
2P LAN -> WLAN i.c.m. Centrino 6300 5 GHz [10m.] (gem.) 85 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
2P LAN -> WLAN i.c.m. Intel Centrino 6300 2,4 GHz [3m] 96 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
2P LAN -> WLAN i.c.m. Intel Centrino 6300 5 GHz [3m] 167 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
2P WLAN -> LAN i.c.m. Intel Centrino 6300 2,4 GHz [3m] 89 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
2P WLAN -> LAN i.c.m. Intel Centrino 6300 5 GHz [3m] 150 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
2P LAN -> WLAN drie notebooks tegelijkertijd 2,4 GHz (gem.) 144 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
2P WLAN -> LAN drie notebooks tegelijkertijd 2,4 GHz (gem.) 159 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
2P LAN -> WLAN drie notebooks tegelijkertijd 5 GHz (gem.) 105 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
2P WLAN -> LAN drie notebooks tegelijkertijd 5 GHz (gem.) 115 Mbit/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
LAN -> WLAN videobestand overzetten (140 MB) 2,4 GHz 3,5 MB/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter
WLAN -> LAN videobestand overzetten (140 MB) 2,4 GHz 3,4 MB/s
Testconfiguratie
  • Ixia IxChariot i.c.m. notebook met Intel Centrino Ultimate
  • N 6300 WiFi
  • adapter

Stroomverbruik

Stroomverbruik idle 6,2 W
Testconfiguratie
  • Testsysteem stroomverbruik
Stroomverbruik zenden drie laptops tegelijkertijd 9,2 W
Testconfiguratie
  • Testsysteem stroomverbruik

Testresultaten bedraad

Doorvoersnelheid LAN➜LAN 941 Mbit/s
Testconfiguratie
  • NetIQ Chariot. i.c.m. Intel 82566DM 10/100/1000 Mbit/s NIC
Doorvoersnelheid WAN➜LAN 226 Mbit/s
Testconfiguratie
  • NetIQ Chariot. i.c.m. Intel 82566DM 10/100/1000 Mbit/s NIC
