Specificaties

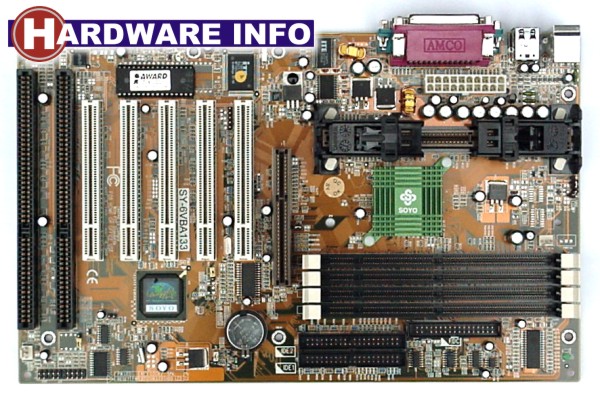

Bovenstaande foto toont het SOYO 6VBA133 moederbord. Zoals wel opvalt verschilt het moederbord aan de buitenkant niet veel van de BX-variant. Net als 6BA+III heeft dit moederbord 1 AGP-slot, 5 PCI-sloten, 2 ISA-sloten en 4 DIMM-sloten. De externe seriële, parallelle, USB, keyboard en muis connectoren hebben ook op het 6VBA moederbord de hippe PC99 kleurtjes.
De ATX power-connector zit ook bij dit moederbod goed verstopt achter de processorvoet. Hoewel dit ietwat vervelender is met aansluiten, zitten echter de voedingskabels wel absoluut niet meer in de weg.
Iets wat we op het 6VBA moederbord moeten missen is de twee fan-connector bij de processorvoet. Het aansluiten van zogenaamde dubbele coolers wordt zo dus een stuk moeilijker. Over de verdere opbouw van het moederbord kan ik echter zeker niet klagen.
Zoals al op de eerste pagina vermeld, zijn de grote verschillen echt pas onder de motorkap te vinden: hiermee bedoel ik dus zaken als 133 MHz FSB ondersteuning, PC133 geheugen ondersteuning en ondersteuning voor Ultra ATA/66 harddisks.
In onderstaand overzicht staan de precieze specificaties van het moederbord, zoals SOYO die zelf opgeeft:
|
CPU SUPPORT The SY-6VBA 133 supports a wide range of INTEL CPUs:
New released Intel Slot 1 CPUs will very likely be supported by the SY-6VBA133 as well. CPU SETTINGS The SY-6VBA 133 provides the user with a very complete and convenient CPU setting environment. The CPU settings are all adjusted through the special SOYO COMBO page in the BIOS, therefore rendering the use of jumpers obsolete. CPU FSB Frequency The SY-6VBA 133 supports an
incredible wide range of CPU FSB frequency
settings: CPU Multiplier The SY-6VBA 133 supports a wide
range of multipliers: CPU Core Voltage The CPU Core voltage is set automatically according to CPU needs. The SY-6VBA 133 supports an advanced Core voltage feature; it can be adjusted through the BIOS directly without setting jumper. In normal mode the voltage will be standard, apart from that the user can specify increments of 2.5%, 5%, 7.5% and 10% on top of the standard voltage. This will provide the CPU with the power it needs for overclocking. EXPANDABILITY The SY-6VBA 133 provides all the standard expansion slots, and many more additional expansion features: Expansion slots
Enhanced IO
ADVANCED FUNCTIONS The SY-6VBA 133 supports advanced functions such as: Wake-On-LAN Supports Wake-On-LAN (Some advanced network cards can wake the system up over the network, the WOL connector is provided by the SY-6VBA 133 to support this function). Multiple boot The SY-6VBA 133 supports booting from devices such as CD-ROM. Power on by modem or alarm If the SY-6VBA 133 system is in suspend mode, it can be switched back on through the modem or RTC alarm through this function. This opens a lot of possibilities, such as remote access that switches the system on only after the modem receives a call. FAIL SAFE The SY-6VBA 133 comes with added functionality to make managing the system easy and safe. Hardware Monitor The integrated Winbond Hardware Monitor IC and Hardware doctor software enables the user the monitor system voltages, temperatures and FAN speeds. This makes sure that the user is full control of the system. Power Failure Resume Function This function can be set in the BIOS, and determines whether the system will automatically turn on again after a power failure. This function is indispensable for server systems that need to always be on line. 5VSB Indicator This green LED gives an indication of the presence of the 5V Standby voltage. This voltage is always fed into the motherboard and is used for functions such as WOL. NORTON SOFTWARE PACK
COMPLIANCE The SY-6VBA 133 complies with all important industry standards. The following underlines the reliability of the SY-6VBA 133, a motherboard to trust.
USER FRIENDLY
|
Zoals wel duidelijk een indrukwekkende lijst specificaties dus.
