Getest

Specificaties

Belangrijkste specificaties

Formaat Micro ATX
CPU socket Socket 1155
Intel Coffee Lake compatible
Chipset Intel H77
Type geheugen DDR3

Processor / Chipset

Formaat Micro ATX
Ondersteunde processor(s) Intel Core i3 / i5 / i7
CPU socket Socket 1155
Intel Coffee Lake compatible
Type processorbus DMI
Chipset Intel H77

Geheugen

Type geheugen DDR3
Type modules DIMM
Hoogst instelbare geheugensnelheid DDR3-2133
Aantal geheugenkanalen 2
Intel XMP compatible
Maximum intern geheugen 16 GB
DDR DIMM-sloten 0
DDR2 DIMM-sloten 0
DDR2 SODIMM-sloten 0
DDR3 SODIMM-sloten 0
DDR3 DIMM-sloten 2

Uitbreidingssloten

Totaal aantal fysieke PCI-Express x16 sloten 1
PCI-Express x8 sloten 0
PCI-Express x4 sloten 0
Totaal aantal fysieke PCI-Express x1 sloten 2
Mini PCI-Express aansluitingen 0
PCI-sloten 0

Multi-GPU

Nvidia SLI compatible
AMD CrossFire compatible

Connectiviteit

USB 2.0 - Totaal 8
USB 2.0 - extern 4
USB 3.0 (USB 3.2 Gen 1) - Totaal 4
USB 3.0 (USB 3.1 Gen 1) - Type-A poorten 2
IEEE 1394 controller -
IEEE 1394 - Aansluitingen achterzijde 0

Storage

Parallel ATA aansluitingen 0
Serial ATA aansluitingen (totaal) 4
Serial ATA 300 aansluitingen 2
Serial ATA 600 aansluitingen 2
eSATA aansluitingen 0
mSATA aansluitingen 0
Extra PATA (RAID) controller -
Extra SATA (RAID) controller -
RAID 0 ondersteuning
RAID 1 ondersteuning
RAID 5 ondersteuning
RAID 10 ondersteuning

Video

D-Sub (VGA) uitgang
DVI uitgang
HDMI uitgang
DisplayPort uitgang

Audio

Onboard audio - Kanalen 5.1
Onboard audio - Codec chip Realtek ALC662
Onboard audio - Codec type HDA
S/PDIF ingang
S/PDIF uitgang
Dolby Digital Live
DTS Connect
Bijgevoegde audiosoftware Creative X-Fi MB5

Netwerk

Aantal netwerkaansluitingen 1
LAN - Chip Realtek RTL8111F
LAN - Snelheid 1.000 Mbit/s
Bluetooth

Stroomcircuit

Totaal aantal chokes 5

Koeling / Overklokken

Fan aansluitingen (totaal) 2
Fan aansluitingen (4-pin) 2
Fan snelheid afhankelijk van temperatuur
Chipset koeler Passief
Max. geheugen voltage 1,85 V
Windows software voor overklokken meegeleverd
Multiplier instelbaar
PCI-Express klokfrequentie instelbaar
Heatsinks op cpu stroomvoorziening
CPU Turbo Modus uitschakelbaar
HyperThreading/SMT uitschakelbaar
Cores uitschakelbaar
PCI-Express sloten hardwarematig uitschakelbaar
Voltage meetpunten op moederbord

Overig

Onboard speaker
100% Solid Condensators
BIOS type AMI
Dual BIOS
Boot-menu in BIOS
Flash-programma in BIOS
BIOS profielen
Probleem diagnose
On-board Power / Reset switch
On-board Clear CMOS switch
Trusted Platform Module
BIOS-chip(s) vervangbaar
Lucid VirtuMVP software

Productcodes

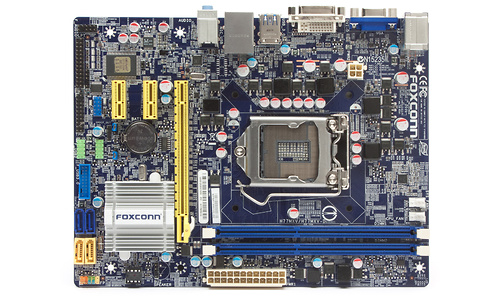

SKU H77MXV-D
Toegevoegd aan Hardware Info zaterdag 7 april 2012

Testresultaten

Dit product is door Hardware Info getest op dinsdag 29 mei 2012.

Benchmarks (Core i5 2500K, geïnt. graphics, Win7 x64)

SiSoft Sandra 2011 - CPU - Dhrystone 101,41 Gips
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)
SiSoft Sandra 2011 - CPU - Whetstone 48,77 GFlops
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)
SiSoft Sandra 2011 - Memory Bandwidth 17,5 GB/s
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)
Cinebench 10 5.723
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)
3DMark Vantage 1.760
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)
Stroomverbruik - Idle 39,6 W
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)
Stroomverbruik - Actief - Cinebench 10 (max) 96,6 W
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)
Stroomverbruik - Actief - 3DMark Vantage (max) 98,8 W
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, Geïntegreerde graphics, Western Digital Raptor 74 GB (Windows 7 x64)

Benchmarks (Core i5 2500K, Radeon HD 6850, Win7 x64)

SiSoft Sandra 2011 - CPU - Dhrystone 101,37 Gips
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)
SiSoft Sandra 2011 - CPU - Whetstone 48,76 GFlops
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)
SiSoft Sandra 2011 - Memory Bandwidth 17,86 GB/s
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)
Cinebench 10 5.703
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)
3DMark Vantage 14.205
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)
Stroomverbruik - Idle 55 W
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)
Stroomverbruik - Actief - Cinebench 10 (max) 113 W
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)
Stroomverbruik - Actief - 3DMark Vantage (max) 137 W
Testconfiguratie
  • Intel Core i5 2500K, 2x 2 GB DDR3
  • 1333, ATI Radeon HD 6850, Western Digital Raptor 74 GB (Windows 7 x64)

Benchmarks (Core i7 3770K, geïnt. graphics, Win7 x64)

PCMark 7 Computation Test 15.607
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
3DMark Vantage (P) 4.186
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Cinebench 11.5 7,49
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Passmark 7 CPUmark 10.569
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Passmark 7 MemoryMark 1.541,4
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Stroomverbruik - 3DMark Vantage (gemiddeld) 63,5 W
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Stroomverbruik - Cinebench 11.5 (max) 91 W
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Stroomverbruik - Idle (gemiddelde 5 min.) 25,2 W
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Gebruikte BIOS-versie tijdens test BB4F1P02
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)
Standaard bClk waarde 99,8 MHz
Testconfiguratie
  • Intel Core i7 3770K, 2x 2 GB DDR3
  • 1600, Geïntegreerde graphics, OCZ Vertex 4 128GB (Windows 7 x64)

Audio test

Frequency response [+] 0,26 dB
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Frequency response [-] 0,39 dB
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Noise level 87,6 dB(A)
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Dynamic range 87,4 dB(A)
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Total Harmonic Distortion (THD) 0,0037 %
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Intermodulation Distortion (IMD) + Noise 0,042 %
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
Stereo crosstalk 83,7 dB
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
IMD+N (Swept frequency) 0,035 %
Testconfiguratie
  • Rightmark Audio Analyzer
  • Loopback test
